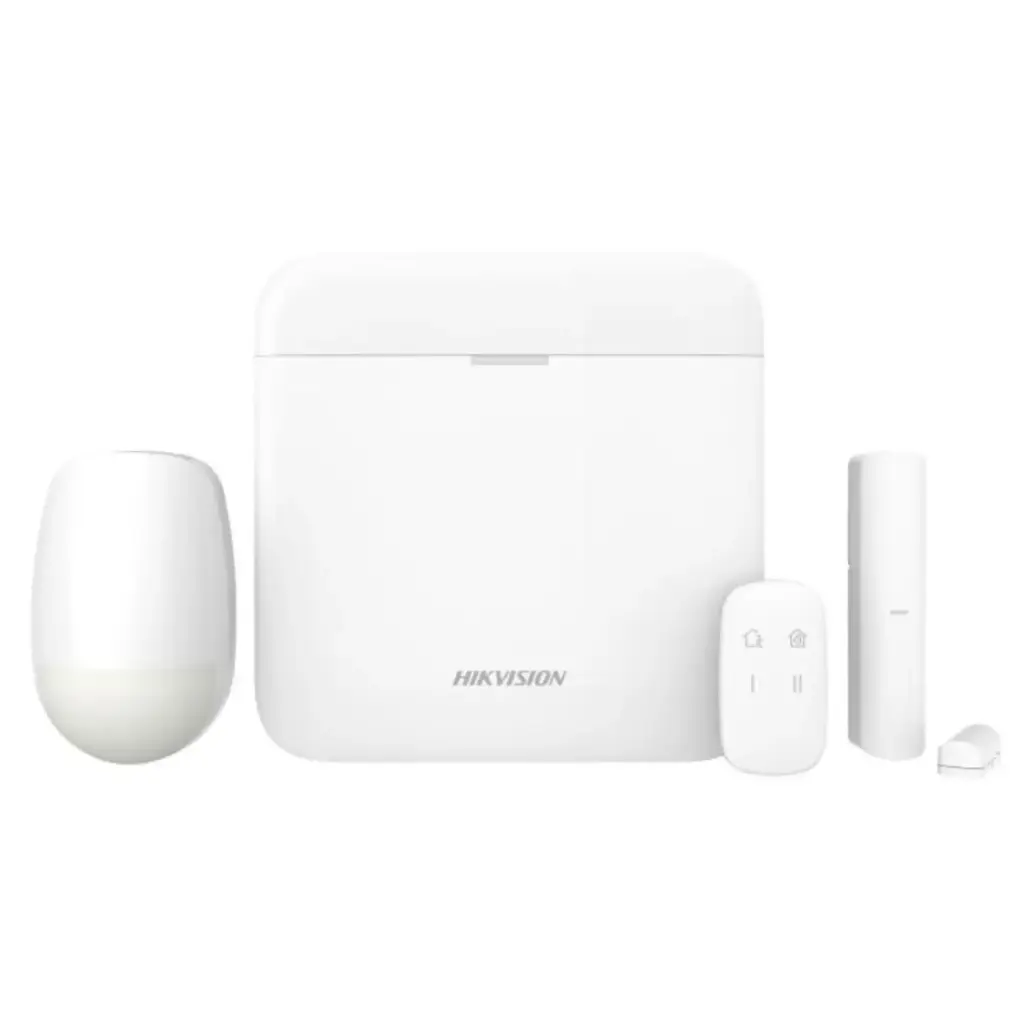

📦 What’s in the Kit
DS-PWA64-L-WB – Main wireless control panel/hub
DS-PKF1-WB – Wireless keyfob for easy arming/disarming
DS-PDP15P-EG2-WB – Wireless motion (PIR) detector
DS-PDMC-EG2-WB – Wireless magnetic door/window sensor
(Contents may vary slightly by region)
⭐ Key Features
📡 System Capacity
Supports up to 64 wireless zones/outputs, including up to 48 PIR cameras (PIRCAMs).
Can manage 32 wireless keyfobs, 8 keypads/tag readers, 4 wireless sounders, 2 repeaters, and 4 multi-transmitters.
Up to 16 separate security areas and 32 users (1 installer, 1 admin, up to 30 regular users).
📱 Connectivity & Control
Multiple communication paths: Wi-Fi, wired network (LAN), and GPRS with SIM slot — helps ensure alarms reach you even if one connection fails.
Remote management & notifications via Hik-Connect or Hik-ProConnect mobile apps, web portal, or cloud portal.
🔐 Security & Operation
433 MHz two-way RF with frequency hopping and 128-bit AES encryption for secure and interference-resistant sensor communication.
Voice prompts and built-in speaker on the control panel for alerts and status messages.
Logs up to 5000 events for troubleshooting and history.
Arm modes: Away and Stay — plus automatic arm/disarm timers.
Forced arming with open zones supported.
📞 Alarm Reporting
Supports alarm reporting to central stations using SIA DC09 (Contact ID), ISUP, and ISAPI protocols.
Video verification support via connected cameras for enhanced alarm accuracy.
⚡ Hardware & Performance
RF frequency: 433 MHz.
Wireless security: Frequency hopping + AES-128 encryption.
LED status indicators: Arm/Disarm, Alarm, Fault, Tamper, Cloud, Power.
Power: Built-in power supply with onboard lithium backup battery (typically ~12 h standby).
Operating temperature: −10 °C to +55 °C.
Dimensions: ~170 × 170 × 38.6 mm; Weight: ~557.5 g.
📊 Usage & Expansion
This kit is ideal as a starter security system for homes, shops, offices, and small businesses. You can expand it with more wireless sensors (motion, door/window, smoke, glass break, flood, etc.) and add wireless cameras (PIRCAMs) to enable visual verification of alarms
