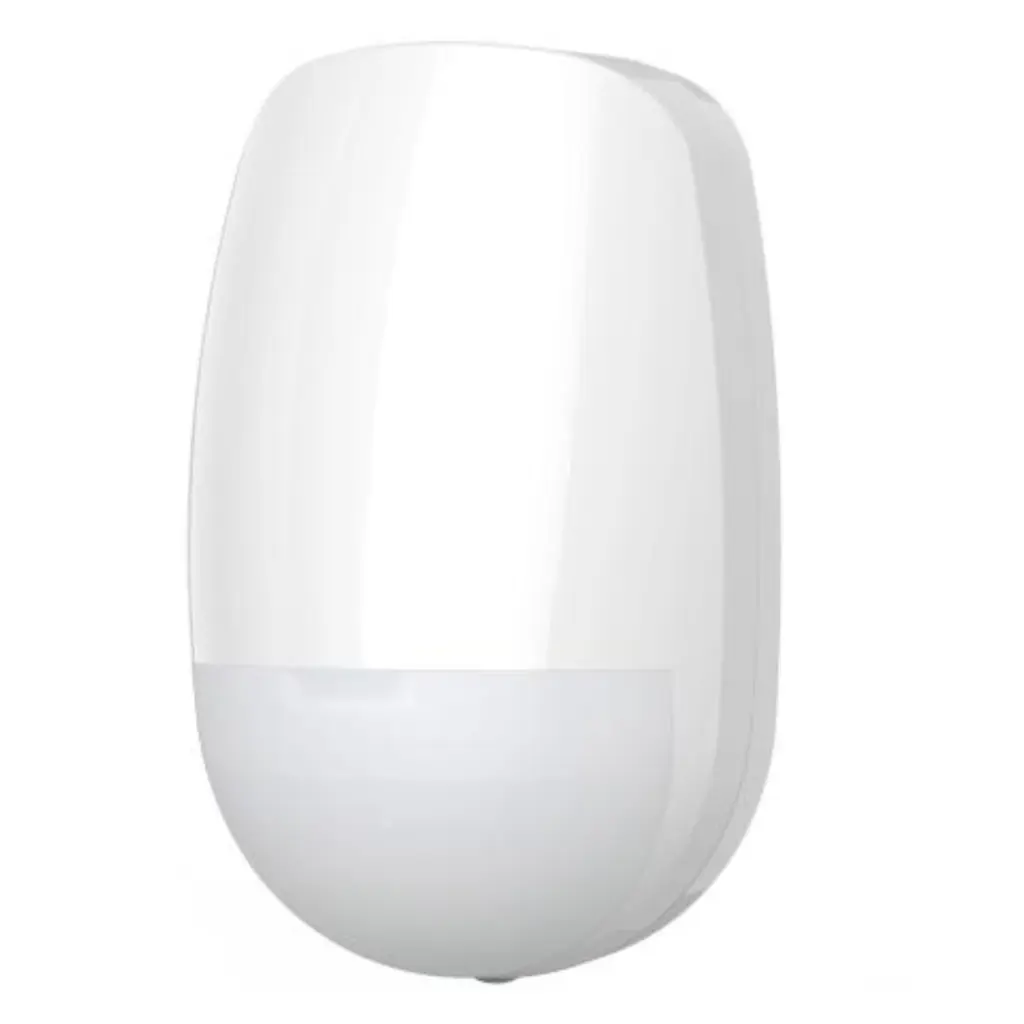

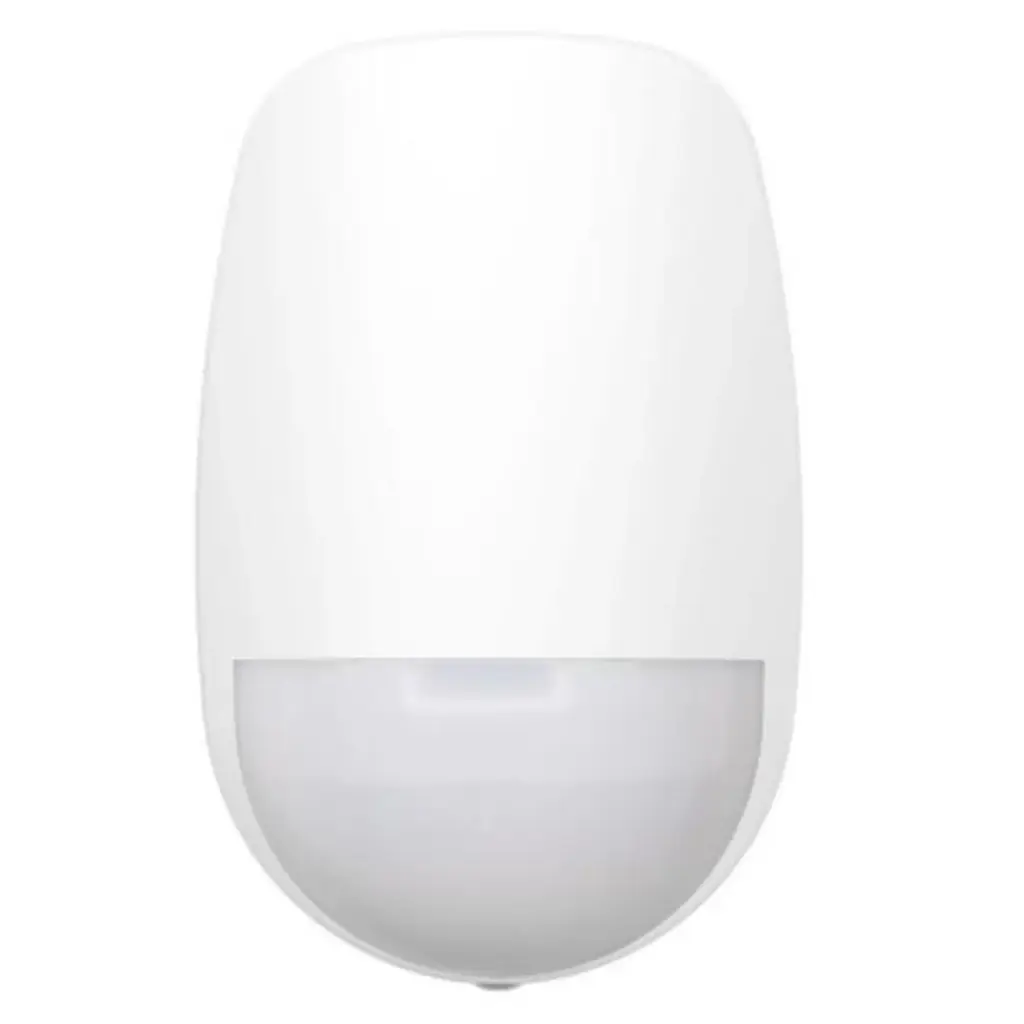

HIKVISION DS-PDP15P-EG2-WB

📌 Key Features

• 📡 Wide motion detection: up to 15 m range and 85.9° field of view.

• 🐾 Pet immunity: can ignore animals up to 30 kg to reduce false alarms.

• 🧠 SEC (Smart Environmental Control): advanced digital signal processing with 3D optics for accurate human detection.

• 📱 Remote configuration: configurable via app once paired to the system.

• 🔁 Tri-X wireless technology: two-way RF with frequency hopping for stable and secure communication.

• 🔋 Long battery life: up to 5 years on a replaceable CR123A battery.

• 🔒 Tamper protection: detects attempts to open or remove the device.

• 📊 Signal & environment indicators: supports signal strength and temperature indicators for optimal installation.

• 🔐 Secure transmission: AES-128 encryption.

📊 Technical Specifications

Detection

• Method: Passive Infrared (PIR)

• Range: 15 m

• Angle: 85.9°

• Zones: 52 detection zones

• Detectable speed: 0.3–2 m/s

• Sensitivity modes: Auto, High, Pet

• White light filter: up to 6500 lux

• Creep zone protection: supported

Transmission

• Technology: Tri-X Wireless (two-way RF)

• Frequency: 433 MHz

• Encryption: AES-128

• Range (open space): ~1.2 km

• Frequency hopping: supported

• Enrollment: Power-up / Remote ID / QR code

Power

• Battery: 1 × CR123A (included)

• Typical voltage: 3 V

• Battery life: up to 5 years standby

General

• Dimensions: ~65.5 mm × 103 mm × 48.5 mm

• Weight: ~128 g

• Operating temp: –10 °C to 55 °C

• Humidity: 10 %–90 %

• Installation height: ~1.8 to 2.4 m

• Application: Indoor mounting

📌 Use & Compatibility

The DS-PDP15P-EG2-WB integrates with Hikvision AX PRO wireless alarm hubs/controllers supporting Tri-X wireless sensors. It’s ideal for perimeter intrusion detection in homes, offices, shops, apartments, and other indoor spaces.
