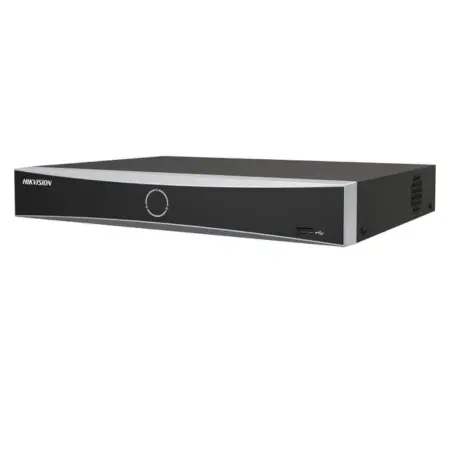

DS-7616NXI-K1 16-ch 1U K Series AcuSense 4K NVR

Key Features

• Supports up to 16 IP‑camera inputs. Hikvision+2Smart Links+2

• Video compression: H.265+, H.265, H.264+, H.264 — helping reduce storage and bandwidth. Visiotech | Security Systems Supplier+2Hikvision+2

• Decoding capacity: up to 1 ch @ 12 MP, or 2 ch @ 8 MP, or 4 ch @ 4 MP, or 8 ch @ 1080p (when AI/analytics are active). Hikvision+2Visiotech | Security Systems Supplier+2

• Incoming bandwidth: up to 160 Mbps — meaning the total summed bit‑rate of all cameras should stay under this for optimum performance. Hikvision+1

• Outputs: 1 × HDMI (4K capable) + 1 × VGA, both independent outputs. Visiotech | Security Systems Supplier+1

• Storage: 1 SATA interface (supports up to ~10 TB HDD in many markets) for local recording. Hikvision

• Smart analytics with AcuSense technology, including:

  • Perimeter protection (line crossing / intrusion) with human/vehicle classification. Hikvision+1

  • Facial recognition / face library capability (depending on camera + setup). Visiotech | Security Systems Supplier+1

• Rack‑mount form factor (1U height) — suitable for server racks or professional setups.

Typical Technical Specifications

Use Cases & Suitability

• Ideal for mid‑sized surveillance deployments: e.g., an office, retail branch, small campus, where up to ~16 IP cameras are needed.

• Good when you want higher resolution cameras (4 MP, 8 MP, even 12 MP) and want some smart analytics (human/vehicle filtering, face capture) built into the NVR rather than just basic recording.

• The rack‑mount 1U design makes it suitable for mounting in server racks / telecom racks with other IT equipment.

Things to Consider / Limitations

• Although it supports “up to 12 MP” on one channel, realistically if you deploy many high‑resolution cameras you may hit decoding or bandwidth limits (particularly when analytics are enabled).

• Only one SATA HDD slot: if you have many high‑res cameras and want long retention (many days/weeks), you’ll need a high‑capacity drive and plan for storage accordingly.

• To make full use of the analytics (face recognition, perimeter protection) you need compatible cameras and correct configuration. The analytics are as much about camera + lens + scene as about the NVR.

• Network/infrastructure: With IP cameras, you’ll want reliable network (Gigabit, good PoE or separate power) and enough switch bandwidth if many cameras.

• Thermal / rack space: As it is rack‑mount, ensure good ventilation, proper rack design and power supply.

• Firmware & compatibility: Make sure you have the latest firmware and that the cameras/cabling you use are compatible with the NVR’s supported features.

Summary

In short: The Hikvision DS‑7616NXI‑K1 is a robust 16‑channel NVR in the K‑Series AcuSense line, offering good support for higher resolution IP cameras, smart analytics (human/vehicle classification, face capture), a moderate incoming bandwidth and a professional form factor (1U rack). If your site has up to ~16 IP cameras and you want both recording and smart features (not just basic video), this is a solid choice. Just plan your storage and bandwidth constraints accordingly.
