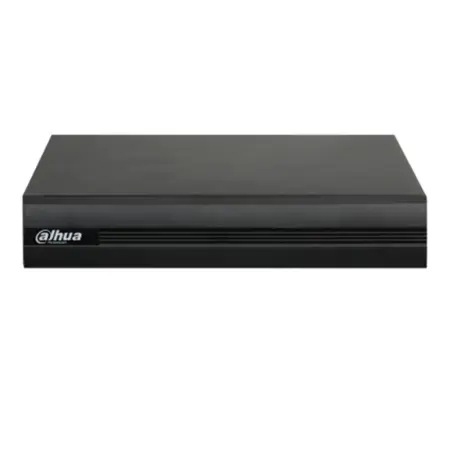

DAHUA DH-XVR1B16-1 2MP 16CH DVR

The Dahua DH‑XVR1B16‑I is a compact 16‑channel XVR (hybrid DVR) that supports analog and IP inputs, delivering flexible surveillance for homes, offices, retail branches and small commercial sites. It offers full support for HDCVI/AHD/TVI/CVBS and IP cameras, plus smart video compression and extended storage capacity — enabling high‑quality recording without excessive storage burden.

Key Features

• 16 analog BNC input channels accept HDCVI, AHD, TVI or CVBS signals. Logicc+1

• IP camera extension: Supports up to 16 + 2 IP channels (total up to 18 channels) with each channel up to 6 MP resolution. Logicc+1

• Video compression: Supports H.265+, H.265, H.264+/H.264 for efficient storage usage. BuyMore

• Hybrid (Penta‑brid) input: Works with multiple video signal types (HDCVI/AHD/TVI/CVBS/IP) making it compatible with existing analog cameras and newer IP cameras. Dahua Thailand+1

• High definition recording: Supports 1080p (and analog up to 2 MP in some listings) as well as up to 6 MP for IP channels. CCTV World+1

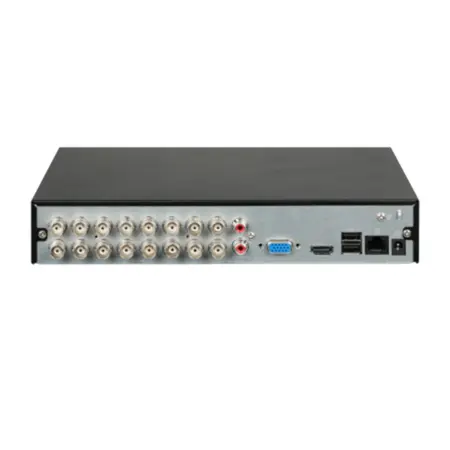

• Display outputs: 1 × HDMI and 1 × VGA output for live view and playback. Sense

• Storage interface: 1 × SATA HDD slot (supporting large capacity drives up to e.g. 6 TB in many markets) for local recording. Cloud Security Technology+1

• Smart features (depending on configuration): Includes AI‑Coding, human/vehicle filtering (SMD Plus) for reduced false alarms when used with compatible cameras. BuyMore+1

• Compact 1U design: Ideal for mounting or placing in a cabinet. Many units measure ~260 mm × 231 mm × 47 mm. Orikmo

Why it’s a Good Choice

• Great for upgrading analog systems: If you already have analog/coaxial cameras and plan to migrate to IP later, this hybrid system gives flexibility.

• Cost‑effective for 16 channels: Instead of fully replacing with IP‑only systems, you can leverage existing cameras and add IP later.

• Efficient storage: With H.265+ support and smart compression, you can record more days with fewer storage demands.

• Business‑ready: Supports multi‑user remote access (e.g., via mobile apps), making it suitable for retail, office, or multi‑site installations.

What to Check / Consider Before Purchase

• Hard Drive Capacity & Retention: The unit supports only one SATA drive (check if yours supports more in your region) so if you have many high‑res cameras or long retention requirements you’ll need a large capacity drive.

• Incoming Bandwidth / IP Channels: If you will use many IP cameras at high resolution, verify the max IP channel support and incoming bandwidth (some versions support 64 Mbps incoming).

• Smart Features Limitations: If you want advanced analytics (face recognition, ANPR etc) check whether your camera models support those. Some analytics functions may be disabled if IP extension mode is used.

• Format Compatibility: Even though it supports many analog/coax standards, check that your existing cameras (or planned ones) match the formats (HDCVI/AHD/TVI etc).

• Firmware & Security: As with any networked surveillance equipment, ensure firmware is up to date and remote access is secured. Some users report external login attempts on Dahua devices when ports are left open.

Specification Summary

• Channels: 16 analog + up to 2 IP (for up to 18) in many markets.

• Max IP resolution: Up to 6 MP per channel.

• Input video formats: HDCVI/AHD/TVI/CVBS/IP.

• Compression: H.265+, H.265, H.264+/H.264.

• Display outputs: HDMI & VGA.

• Storage: 1 × SATA HDD (capacity depending on region, often up to 6 TB).

• Smart filter: Human/vehicle detection (SMD Plus) when used with compatible cameras.

• Form factor: Compact 1
